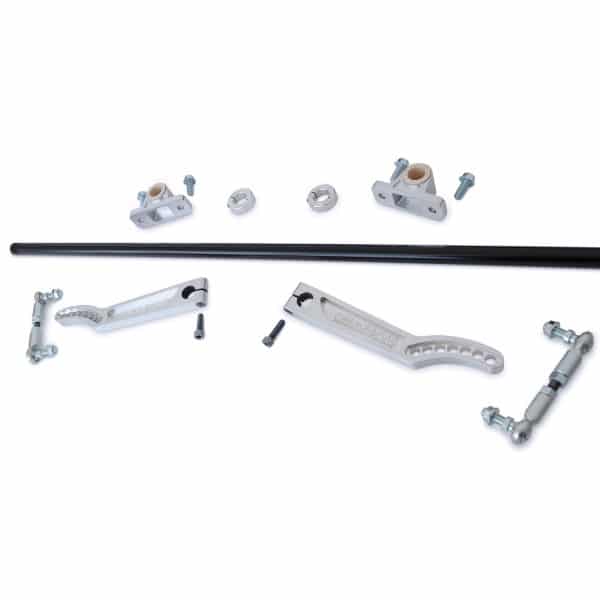

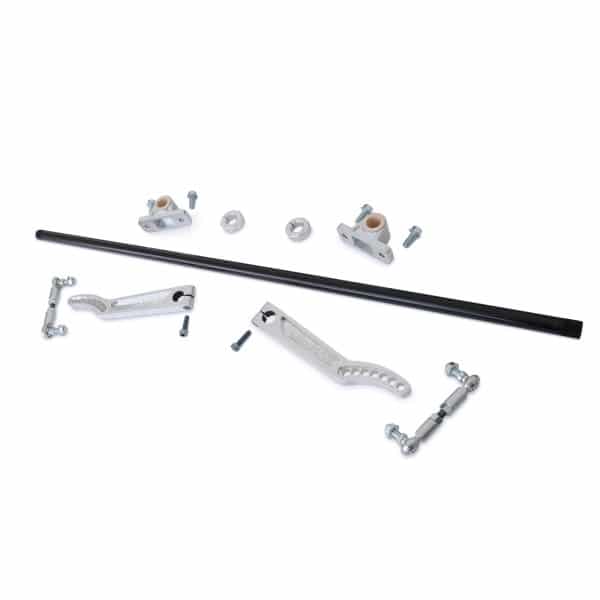

KARCEPTS S2000 REAR SWAY BAR KIT

Description

The Karcepts S2000 Rear Sway Bar Kit was designed specifically for square tire setups, but may additionally be used by anyone looking to tame down the on-throttle oversteer characteristics of their S2000. The large OEM rear S2000 sway bar is fun to drift around but is not always the quickest way around course. This sway bar kit achieves near OEM stiffness on its full stiff setting, yet allows you to soften the rear bar tremendously. The ability to run a softer rear bar still maintains mid-corner rotation benefits, yet helps put the power down better by eliminating too much on-throttle oversteer. With 13 available stiffness settings, the perfect compromise can be found for every driving style.

Billet aluminum arms optimized for strength and weight utilizing the latest FEA software
Like a blade style sway bar, roll stiffness can be adjusted quickly, and with one wrench
Unlike a blade style sway bar, adjustments are finite, with no possibility of slipping position
Rate adjustments are made with the vehicle on the ground, even at low ride heights
13 possible adjustment settings, maximizing tunability and overall range
Light weight, zero deflection solid sway bar mounts provided for precise feel
Low friction, lubrication free, dirt resistant, solid polymer bearings require no maintenance
Heat treated and plated steel alloy PTFE lined endlinks and all hardware included
22mm (0.875″) diameter high-grade spring steel splined center section for consistent rates

Sway Bar Rates:

OEM S2000 Rear Sway Bars:
’00-’01 = 427 lbs/in
’02-’03 = 396 lbs/in
’04-’09 = 311 lbs/in
’08-’09 CR = 362 lbs/in

Popular MX-5 Rear Sway Bar Mod = 179 lbs/in

Karcepts S2000 Rear Sway Bar Kit – 0.095″ Wall:
Hole 1/1 = 129 lbs/in
Hole 1/2 = 137 lbs/in
Hole 2/2 = 145 lbs/in
Hole 2/3 = 155 lbs/in
Hole 3/3 = 164 lbs/in
Hole 3/4 = 176 lbs/in
Hole 4/4 = 188 lbs/in
Hole 4/5 = 202 lbs/in
Hole 5/5 = 216 lbs/in
Hole 5/6 = 232 lbs/in
Hole 6/6 = 248 lbs/in
Hole 6/7 = 266 lbs/in
Hole 7/7 = 283 lbs/in
