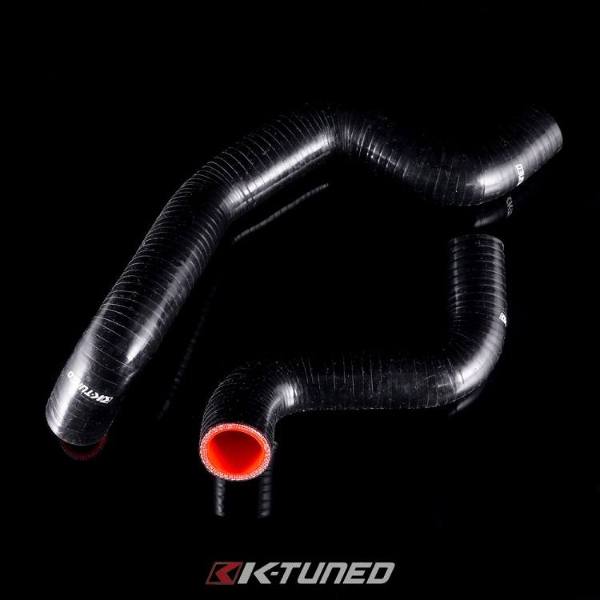

K-Tuned K-Swap Rad Hoses – Full DC5 Rad Swap w/K24

Description

Applications: EG, DC2 & EK (w/ EKK2 mounts only) with OEM or aftermarket RSX/EP3 Radiator.

K-Tuned has added yet another custom rad hose kit for K-swapped vehicles. This set of upgraded hoses was designed to fit perfectly in a handful of K-swapped cars using the OEM RSX/EP3 radiator and most RSX/EP3 specific aftermarket units. Note that the RSX rad is a full width rad, so some simple modification and movement of the rad mounting tabs will be required for proper fitment on Civics.

K-Tuned rad hoses are made from strong, heat resistant, high grade, 4-ply reinforced silicone. The inner layers of silicone are red and the outer layer is finished in black with white K-Tuned logos at each end. These will fit with all PRB/PRC, RBC/RRC, and Skunk2 intake manifolds. No more installation headaches or messing around with universal hoses.

These hoses come in two options, K20 and K24. The difference is the upper radiator hose. The K20 option is designed for cylinder heads with the coolant housing on the front. The K24 option is for cylinder headers with the upper coolant housing on the side. Both options will require a thermostat housing that is pointed down, like most K20s.
